Support XFINITY Internet Advanced Wireless Gateway Features

Introduction

Now that you’ve mastered the basics, take advantage of the advanced features offered by the wireless gateway.

Overview

Take advantage of all the specialized features the wireless gateway and your Wi-Fi service have to offer. Once you’ve set up your wireless home network, you can improve your security, personalize your settings, protect your children and more. We’ll walk you through some of the basic features and how to get them working.

Connect a Printer to Your Wireless Home Network

Connecting a wireless printer to your wireless network offers the unbeatable convenience of printing from a wireless device anywhere within range.

Note: Some printers are not capable of connecting to a wireless network. If you're unsure whether your printer supports wireless networking, check your printer's user guide to learn about its specific features.

  1. Locate the Network Name (SSID) and Network Password Key (WEP or WPA) for your home network.
  2. Go to the control panel on your wireless-enabled printer.
  3. On the printer's control panel, select the Setup button. (The Setup button, usually a wrench icon, differs between product models.)
  4. Select the Network menu.
  5. The Wireless Setup Wizard will list the wireless networks in the area. Select your Network Name (SSID). If your wireless network is not listed, scroll to the bottom of the list and enter the Network Name (SSID) and Password, if a secured network.
  6. If the connection is not successful, print a Wireless Network Test report to help troubleshoot.

Set up a Firewall

A firewall is a barrier that controls what kind of data comes into and out of your network. A firewall can prevent spam sites from installing unwanted programs on your computer, protect your personal information from theft, and much more.

Note: Higher security from a firewall can block functions you might use, such as peer-to-peer applications like Skype or Spotify. The default firewall setting on the wireless gateway is Low, but you can change your settings to suit your particular needs at any time.

To set up a firewall, follow the step-by-step instructions below:

  1. Open the wireless gateway’s Admin Tool at http://10.0.0.1.

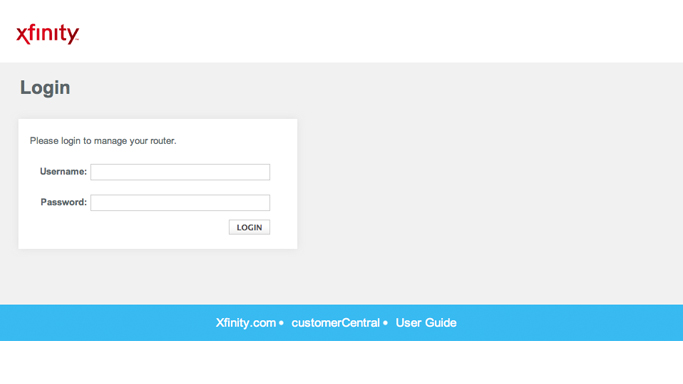

    Login screen for wireless gateway's Admin Tool

  2. On the Admin Tool home page, click Gateway.
    Gateway screen for wireless gateway's Admin Tool

  3. Under Gateway, click Firewall.
  4. From there, you can choose:
    • Maximum Security (High), which will block most applications except web browsing, email, iTunes and VPN.
    • Typical Security (Medium), which allows access to a majority of sites and services, but blocks all peer-to-peer applications.
    • Minimum Security (Low), which enables all secure apps. This is the default setting when you first use your wireless gateway.
    • Custom Security, which will allow you to block individual types of traffic, or disable your firewall entirely.
      Gateway>Firewall screen of wireless gateway's Admin Tool

  5. Click SAVE SETTINGS.
Note: A firewall can be set up on both your computer and the wireless gateway, but more than one firewall can cause interference.

Set up Parental Controls

If you have kids, you might want to set parental controls to help you manage what sites and information they have access to on the Internet. Your wireless gateway allows you to block keywords in web addresses and specific sites; you can also control which computers these restrictions apply to.

You can set and adjust parental controls at the wireless gateway’s Admin Tool at http://10.0.0.1.

Managed Sites

Using the Managed Sites menu, you can block access to certain websites from local computers:
  • Blocked Sites: Enter the URLs of the websites to be blocked, and set up a time schedule.
  • Blocked Keywords: Enter keyword(s) that appear on websites you want blocked, and set up a time schedule.
  • Trusted Computers: Specify the computers you do not want affected. If a computer is selected as a Trusted Computer, it bypasses the configured parental control settings.

Managed Services

The Managed Services menu allows you to prevent access to applications and services.
  • Trusted Computers: Specify the computers you do not want affected. If a computer is selected as a Trusted Computer, it will bypass the configured parental control settings.
  • Blocked Services: Define services and ports to be blocked using parental controls.

Managed Devices

The Managed Devices menu displays information about devices that can be managed by rules.
  • Add Allowed Devices: Choose which devices, if any, are exempt from parental control rules.
  • Rules: Created reports display attempted violations of parental control rules.
